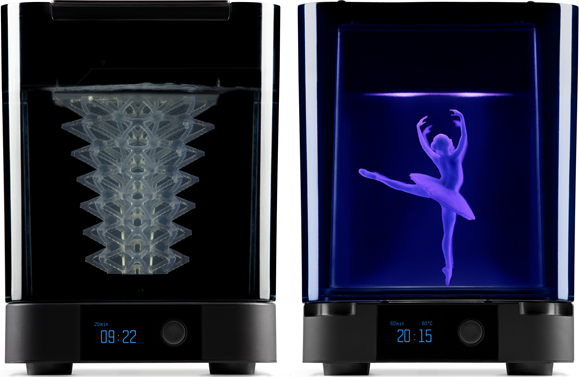

Form Wash + Form Cure

빠르고 전문화된 후처리 시스템

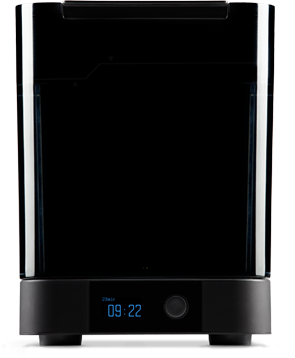

Form Wash

Printer Compatibility

  • Form 3, Form 3B, Form 2

Dimensions

  • 26.2 × 29.3 × 34.0 cm
  • 10.3 × 11.5 × 13.4 in
  • Height when open: 64 cm (25.2 in)

Weight

  • 6.7 kg
  • 14.5 lbs

Bucket Volume

  • 14.5 × 14.5 × 17.5 cm
  • 5.7 × 5.7 × 6.9 in

Suggested Operating Environment

  • Suggested 18—28 °C
  • Suggested 64—82 °F

Agitation Method

  • Magnetically coupled impeller

Included Accessories

  • a. Wash Bucket
  • b. Wash Basket
  • c. Hydrometer
  • d. Siphon Pump
  • e. Part Removal Tool
  • f. Scraper
  • g. Tweezers
  • h. Flush Cutters

Power Requirements

  • 90–240 V
  • 2.0 A 50/60 Hz
  • 50 W

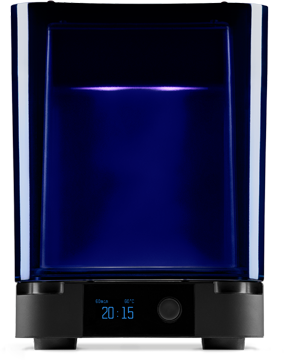

Form Cure

Printer Compatibility

  • Form 3, Form 2

Dimensions

  • 26.2 x 26.2 x 34.0 cm
  • 10.3 x 10.3 x 13.4 in
  • Height when open: 64 cm (25.2 in)

Weight

  • 5.6 kg
  • 12.4 lbs

Turntable Diameter

  • 19.3 cm
  • 7.6 in

Maximum Part Height

  • 18.5 cm (7.28 in)

Operating Temperature

  • Suggested 18—28 °C
  • Suggested 64—82 °F

Maximum Cure Chamber

  • 80 °C
  • 176 °F

Light Source

  • 13 multi-directional LEDs
  • LED Power

    39 W
  • LED Radiant

    9.1 W
  • LED Wavelength

    405 nm

Power Requirements

  • 90–240 V
  • 6.0 A 50/60 Hz
  • 144 W
